CTRLX Wireless Bass Knob
Original price was: ₹21,500.00.₹18,499.00Current price is: ₹18,499.00.
Share:
product description

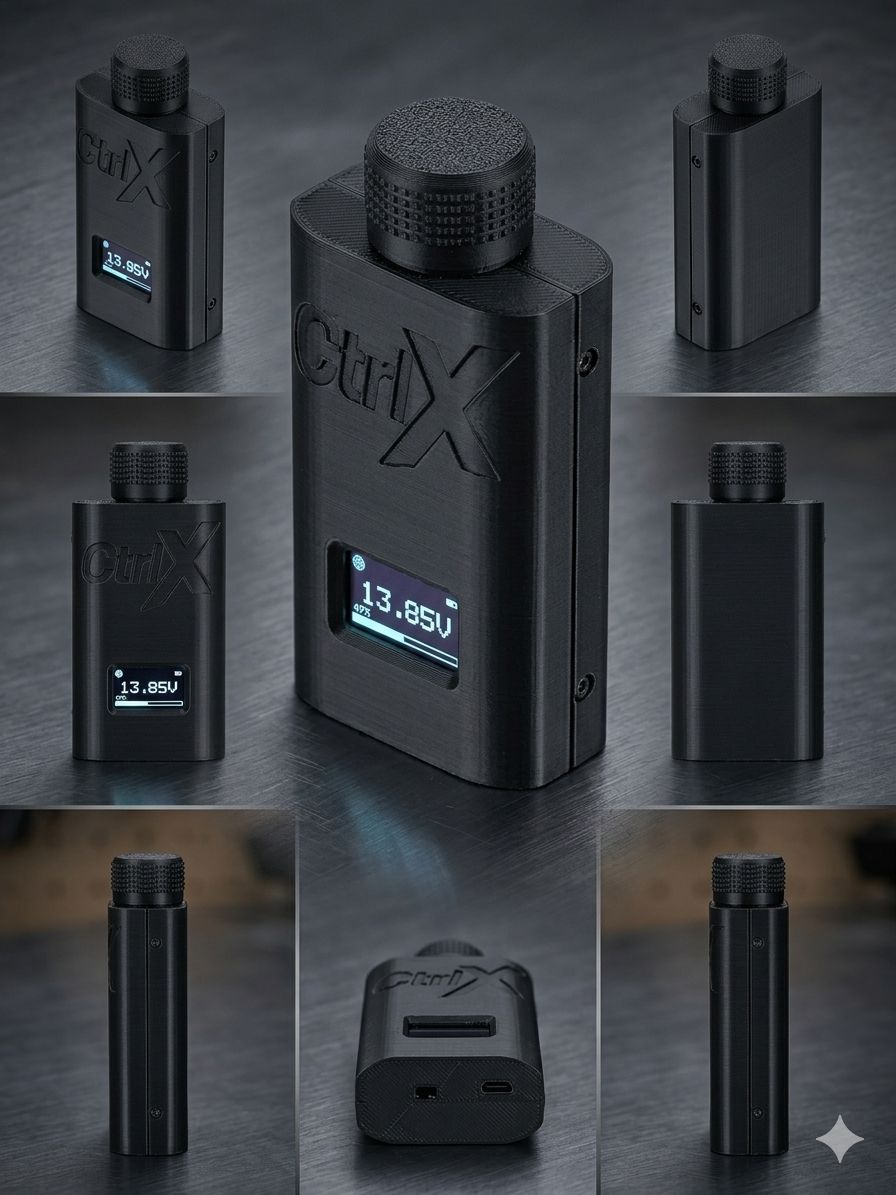

The CTRLX Wireless Bass Knob is a premium wireless bass level controller designed for car audio enthusiasts who want precise subwoofer control without the limitations of a wired remote. Engineered for compatibility with most aftermarket amplifiers featuring RCA inputs, the CTRLX system replaces the traditional wired bass knob with a compact wireless controller, providing a clean installation while maintaining responsive and accurate bass adjustment.

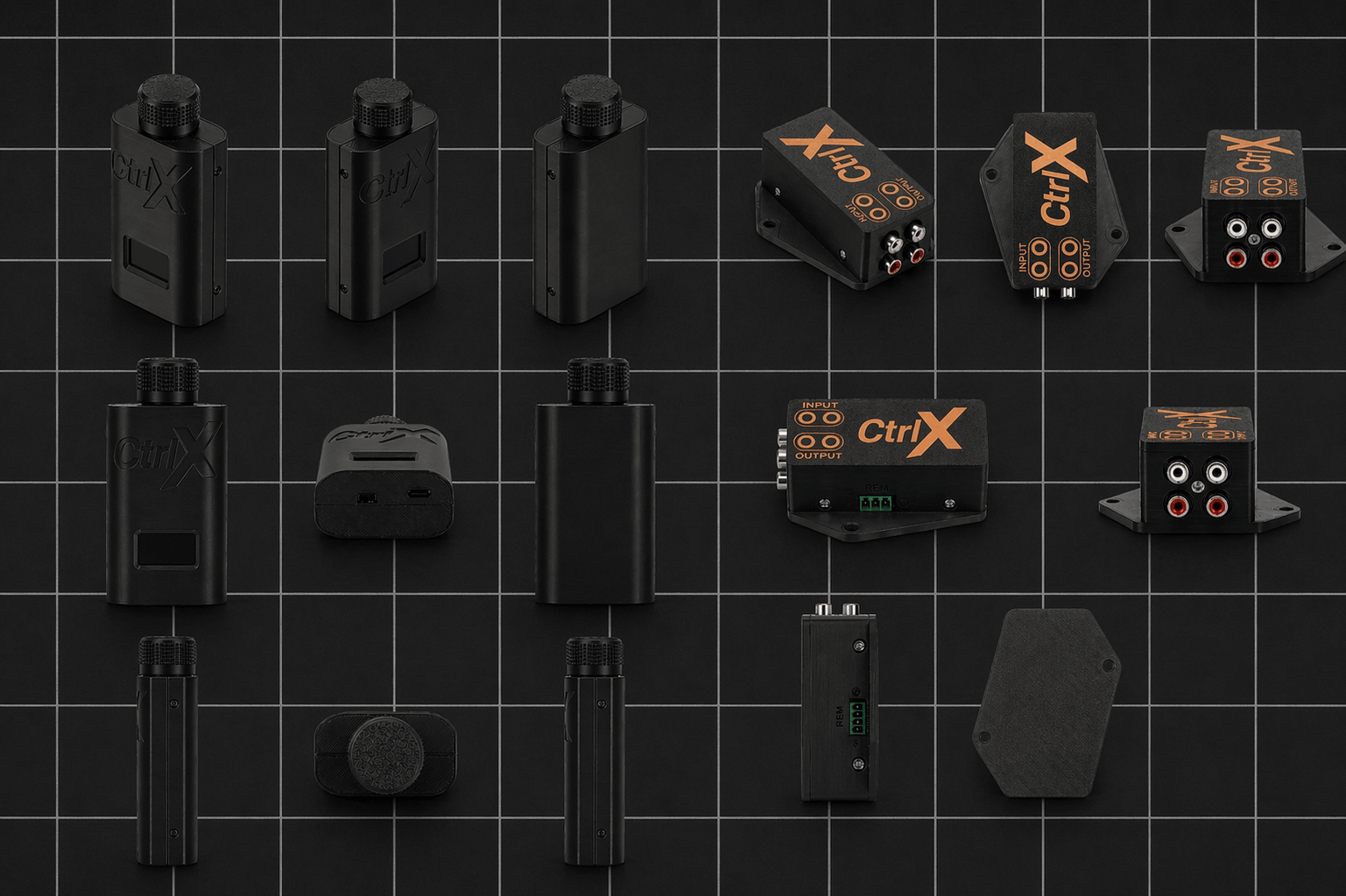

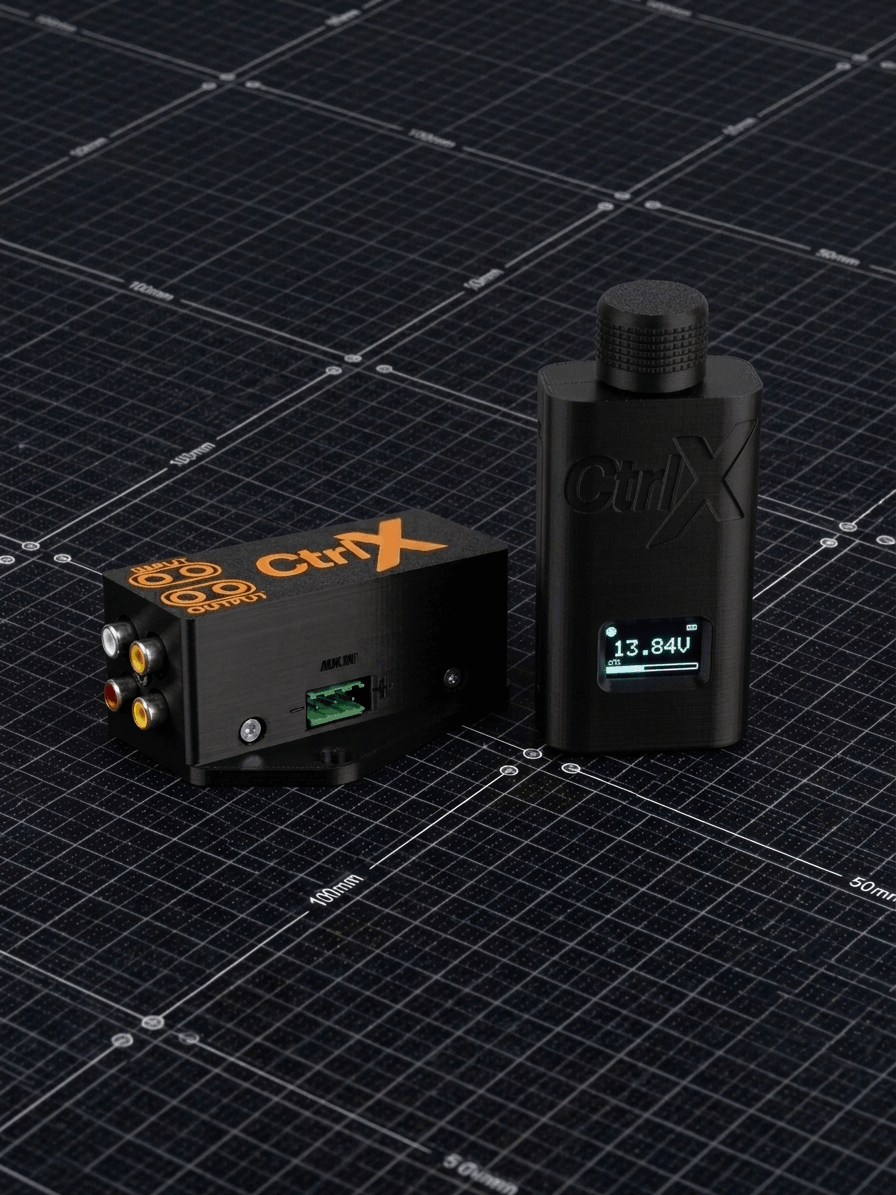

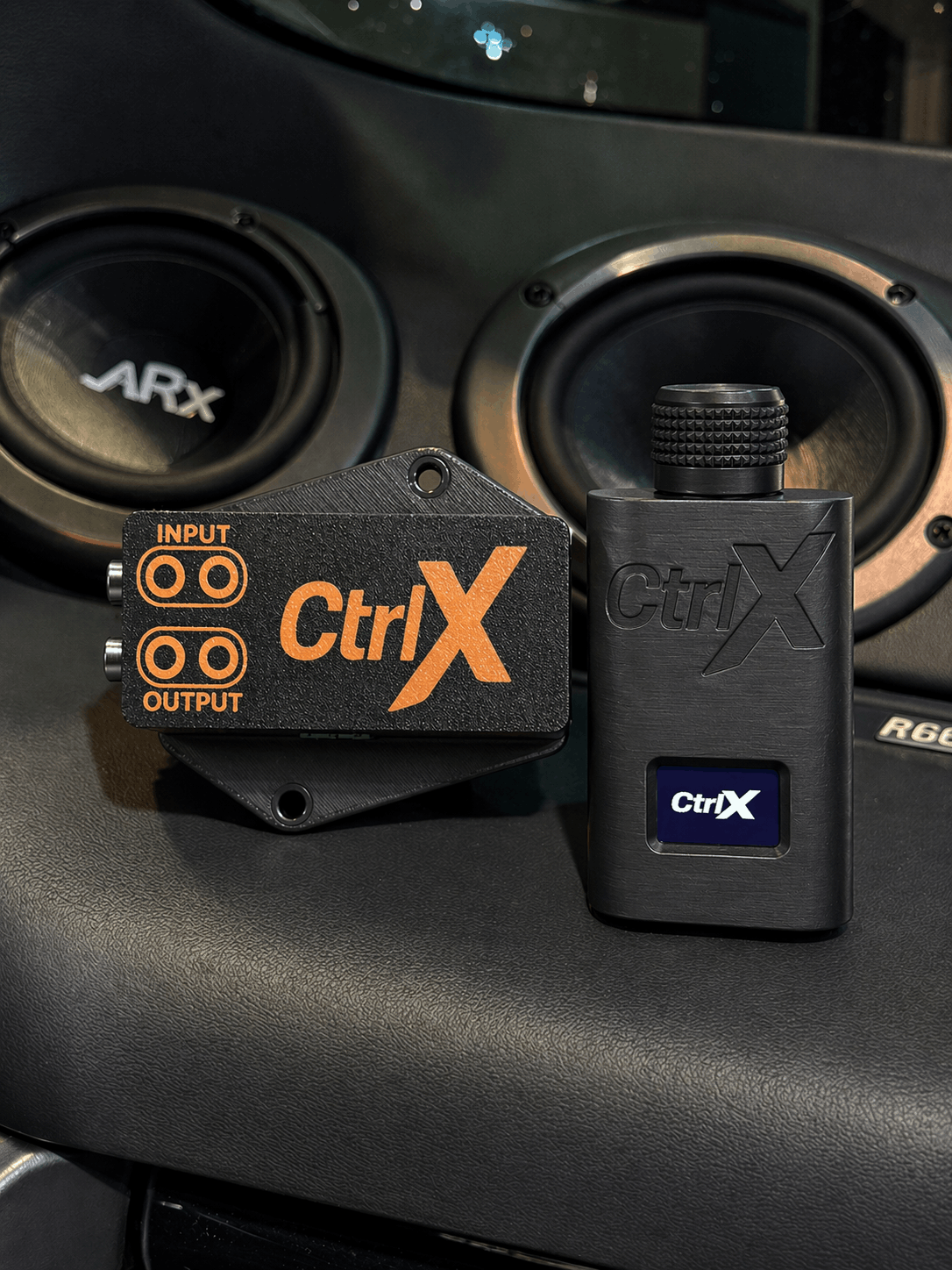

The system consists of a wireless transmitter (bass knob) and a compact receiver module that installs between the audio source and amplifier. The receiver is powered from a standard 12V DC vehicle electrical system and features RCA input and output connections for seamless integration into existing car audio systems. The transmitter and receiver are factory paired, allowing quick installation with no complicated setup or programming required.

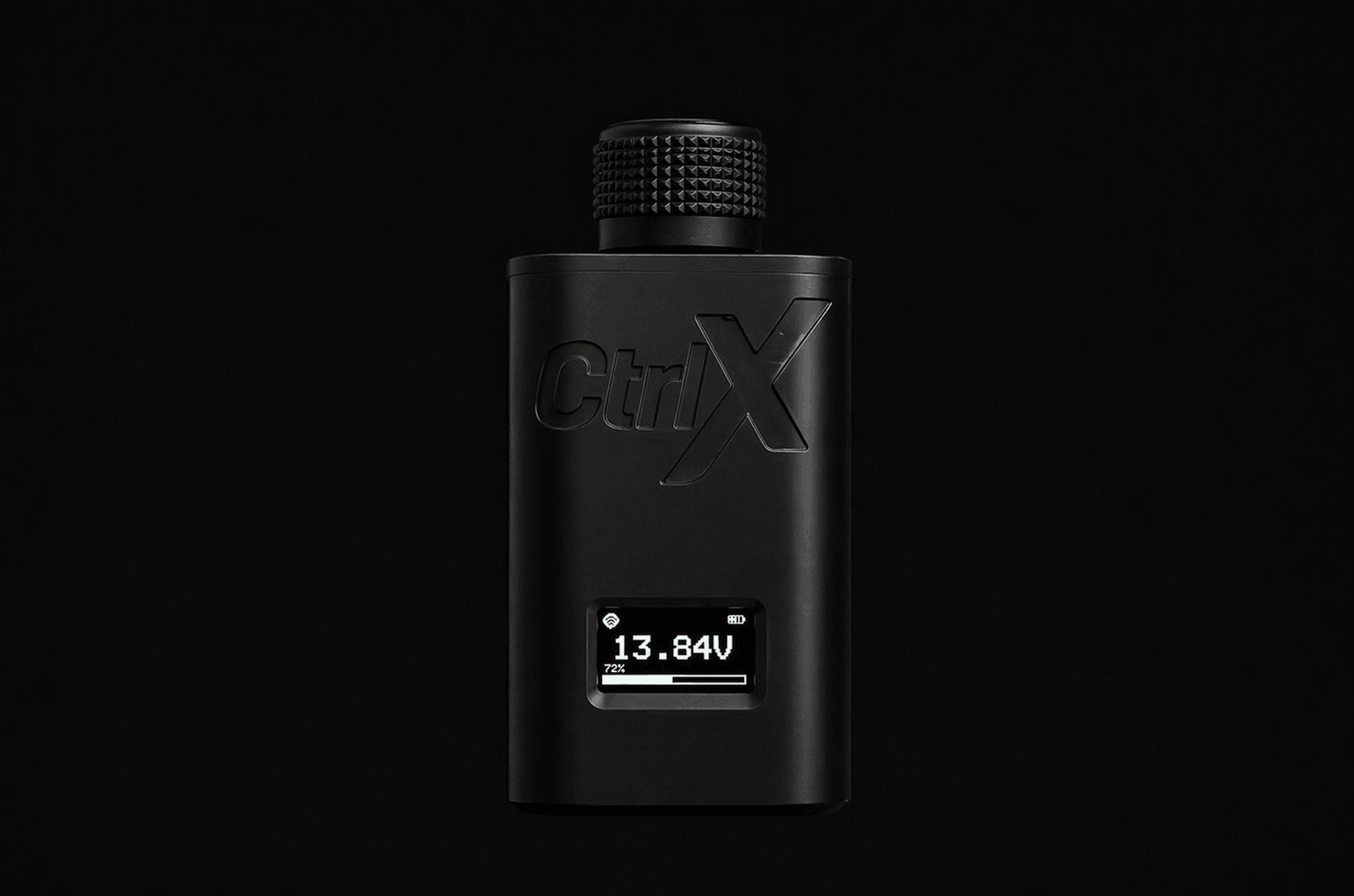

The wireless bass knob features a bright OLED display that provides real-time information including bass level, connection status, vehicle battery voltage, and controller battery level. The display remains easy to read in both daylight and nighttime driving conditions. The rechargeable controller charges through a modern USB-C port, eliminating the need for disposable batteries while providing long operating life.
CTRLX utilizes a low-latency wireless communication system designed specifically for automotive environments. This ensures smooth, responsive bass adjustments without the signal delays commonly associated with generic wireless devices. Intelligent pairing and automatic reconnection allow the controller to reconnect to the receiver whenever the vehicle is powered on.
The controller offers smooth, precise adjustment of the subwoofer output level, allowing users to increase bass for music that demands more low-frequency impact or reduce bass for spoken audio and everyday listening. Unlike traditional wired remote knobs that require routing cables throughout the vehicle, the wireless design significantly reduces installation time while providing greater flexibility for controller placement.
Additional intelligent features include automatic sleep mode to conserve battery power, fast wake-up when the vehicle is started, and stable wireless performance inside the vehicle cabin. The compact receiver can be mounted discreetly behind the dashboard or near the amplifier, maintaining a clean, professional installation.
Key Features
- True wireless bass level control
- Factory-paired transmitter and receiver
- Bright OLED display
- Real-time vehicle voltage monitoring
- USB-C rechargeable controller
- Battery level indicator
- Automatic sleep and wake functionality
- Stable low-latency wireless communication
- Compatible with most RCA-equipped aftermarket amplifiers
- Compact receiver for hidden installation
- Clean cable-free dashboard installation
- Designed and engineered for automotive use
Technical Specifications
- Operating Voltage (Receiver): 12V DC
- Controller Charging: USB-C
- Display Type: OLED
- Audio Connection: RCA Input / RCA Output
- Installation: Plug-and-play with compatible amplifier systems
- Wireless Pairing: Factory paired with automatic reconnection
- Application: Car audio subwoofer level control
- Compatibility: Most aftermarket amplifiers with RCA inputs
The CTRLX Wireless Bass Knob is an ideal upgrade for installers and audio enthusiasts seeking a modern, clutter-free solution for subwoofer control. By combining wireless convenience, reliable automotive-grade performance, and a feature-rich OLED interface, CTRLX delivers a premium user experience while preserving the sound quality and responsiveness expected from a high-performance car audio system.
Universal Fit
Compatibility
CTRLX is amplifier-agnostic. If your amplifier or DSP has a standard RCA input — and almost all do — CTRLX will work with it. No brand lock-in. No proprietary cables. No firmware flashes.
Any Amplifier with RCA
Plugs into the remote-bass / RCA input on the back of your amplifier. The receiver is wired in-line between your head-unit and amp — the wireless half lives in your hand.
Any Class · A / B / D / Mono
Class doesn't matter. Power doesn't matter. If it has an RCA in (mono or stereo), CTRLX speaks to it.
RCA up to 6.5V Max
Tested with high-output head-units, DSPs, and pre-amps. The receiver tolerates up to 6.5 V on the RCA side without distortion.
Mono Bass Channel
Designed specifically for the bass / sub channel. One mono control point — exactly how the amp's existing bass-level pot works.
9 V – 18 V Vehicle Range
Works on 12 V cars, 24 V commercial vehicles, and on the bench with a regulated supply. The voltmeter calibrates inside that range.
No App. No Account.
Pair once at the factory — done. No phone needed. No login. No cloud. The CTRLX Link talks directly between knob and receiver.
If you're wondering
"Will it work with my setup?"
Look at the back of your amplifier. If you see a stereo or mono pair of RCA jacks labelled BASS REMOTE, REMOTE LEVEL, R.E.M., or simply two RCA inputs — CTRLX will plug straight in. We’ve tested it with Pioneer, Kenwood, Alpine, Sony, Hertz, JL Audio, Rockford Fosgate, Audison, Helix, Massive, ARX, DD Audio, and dozens of Indian aftermarket brands. Same answer every time: it works.
Not sure about your specific amp? Send us a photo of the back panel and we’ll confirm before you order.
Full Specifications
Full Specifications
| Specification | Details |
|---|---|
| Working Voltage | 9V – 18V |
| Wireless Range | Up to 100 ft |
| RCA Input Max | 6.5V Maximum |
| Channels | Mono |
| Frequency Response | 10 Hz – 20 kHz |
| Battery | 1000 mAh Li-Po |
| Display | 0.96″ OLED Monochrome |
| Charging Port | USB-C |
| Auto Sleep | 10s / 15s / 30s / 45s / 60s / 120s |
| Sensitivity | Low / Normal / Medium / High |
| Voltmeter | ✓ With Calibration |
| Origin | Made in India |
Onboard Interface
Built-in Settings Menu
Five fully-configurable menus, an animated cursor, and zero apps to download. Hold the dial for 0.8 seconds and the OLED transforms into a complete configuration cockpit.

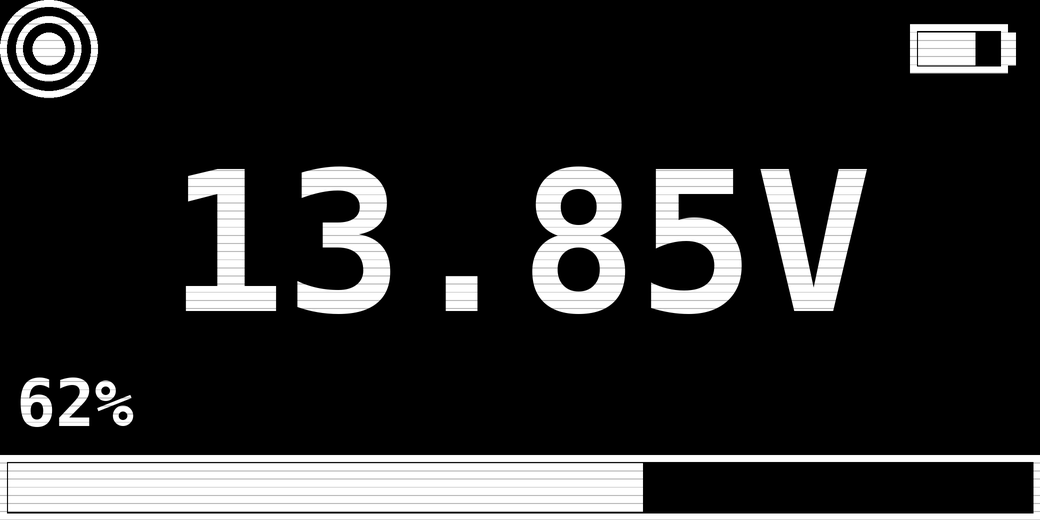

The Start Screen
Six pieces of information on a 128 × 64 monochrome canvas. Below — what every glyph means, then a live render reacting in real time.
Static · UI Map
1. Receiver Link
Solid signal icon when paired with the receiver.
2. Knob Battery
Live capacity of the 1000 mAh internal cell.
3. Live Car Voltage
Real-time alternator reading from the receiver.
4. Bass Level %
Current bass output level shown as a percentage (0 - 100)
5. Bass Bar
Visual fill matching the bass level.

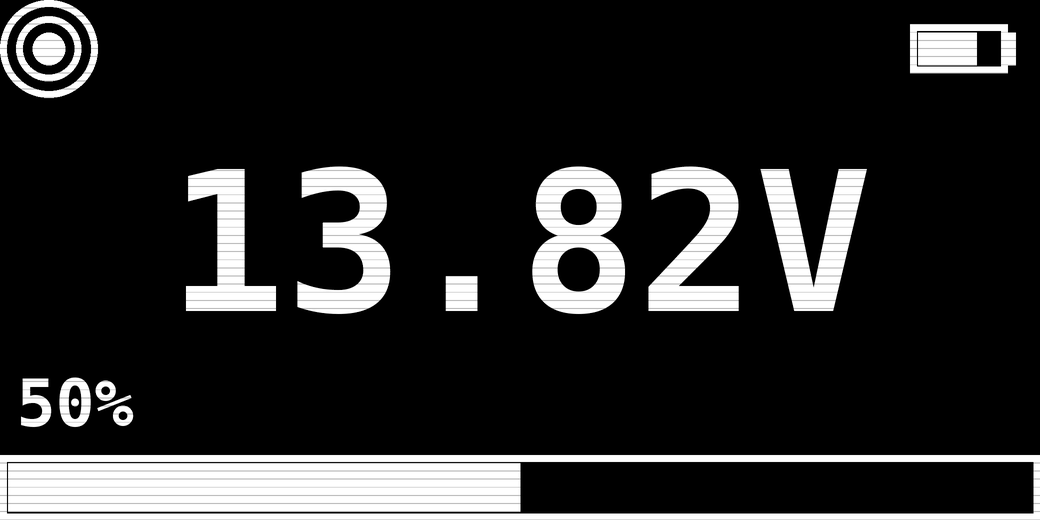

Live · In Motion
- Receiver Linked
- Hover to ride the bass
- Voltage drifting · 120 BPM beat
Rotate
Adjust volume 0–100. Inside menus, scroll through options.
Tap
Mute / unmute instantly. Confirm a selection inside menus.
Hold 0.8s
Open the Settings menu. Auto-exits after 30s of no input.

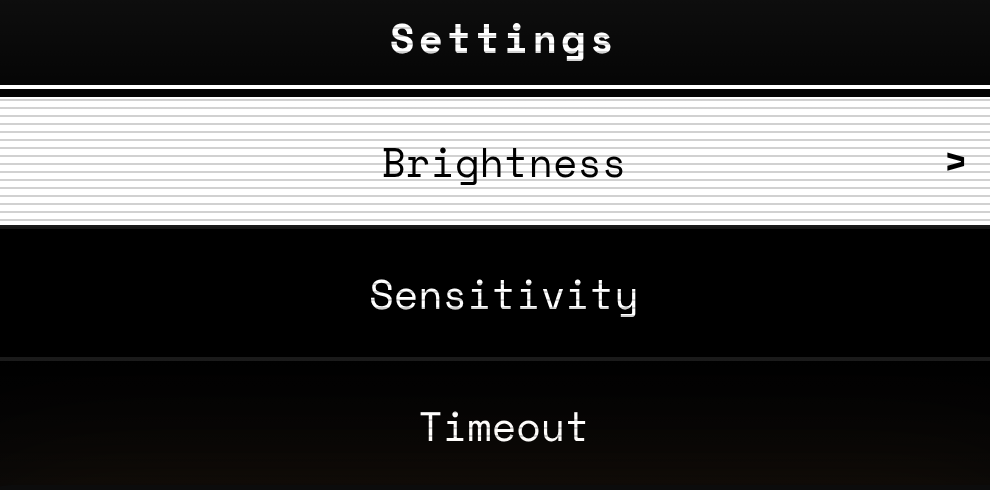

01 — Main
Settings Hub
Six entries: Brightness, Sensitivity, Timeout, Knob Direction, About, and Exit. The cursor glides between rows with a 30 ms easing animation.
- 6 entries · animated cursor

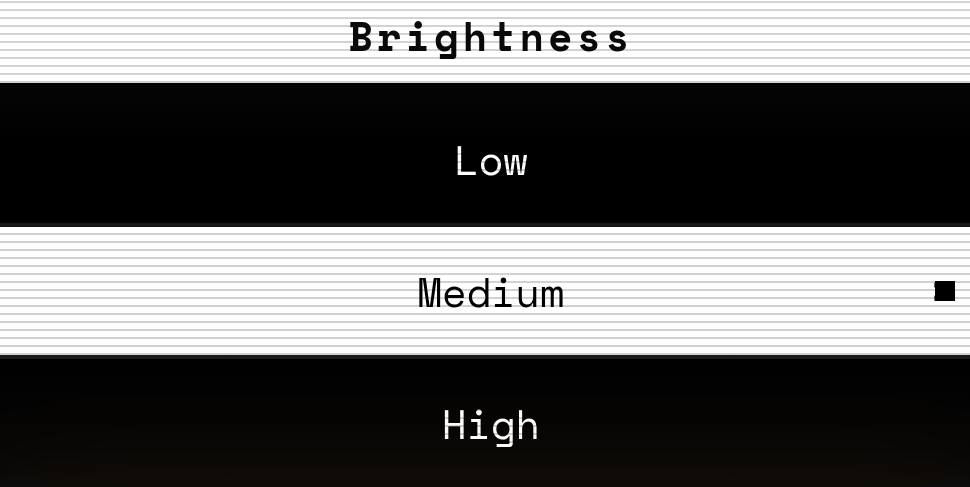

02 — Display
Brightness
Three levels mapped directly to the SSD1306 contrast register — 0x80, 0xCF, 0xFF. Picks the right intensity from a sun-lit dash to a night drive.
- Low · Medium · High

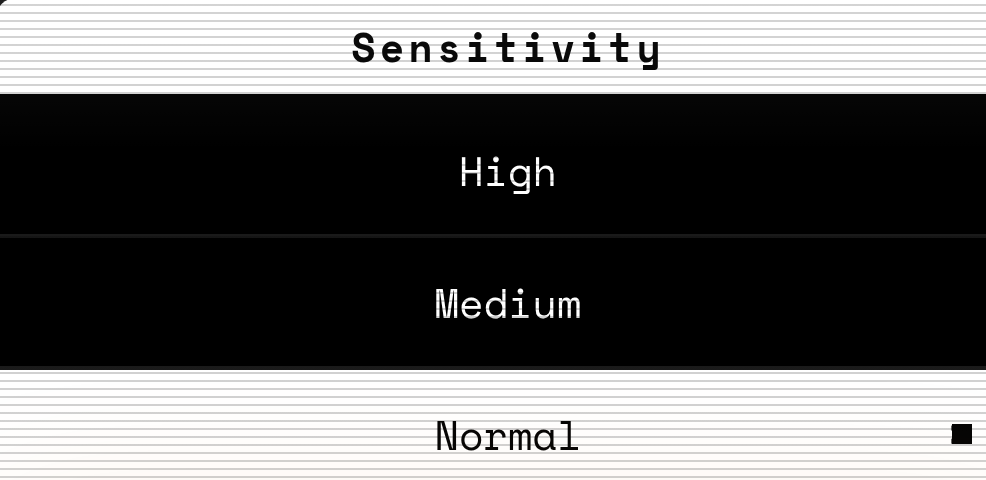

03 — Tuning
Sensitivity
Tunes how aggressively the bass level reacts to knob rotation. Pick Normal for daily driving, High for live tweaking, Low for fine-grained studio-style control.
- High · Medium · Low · Normal

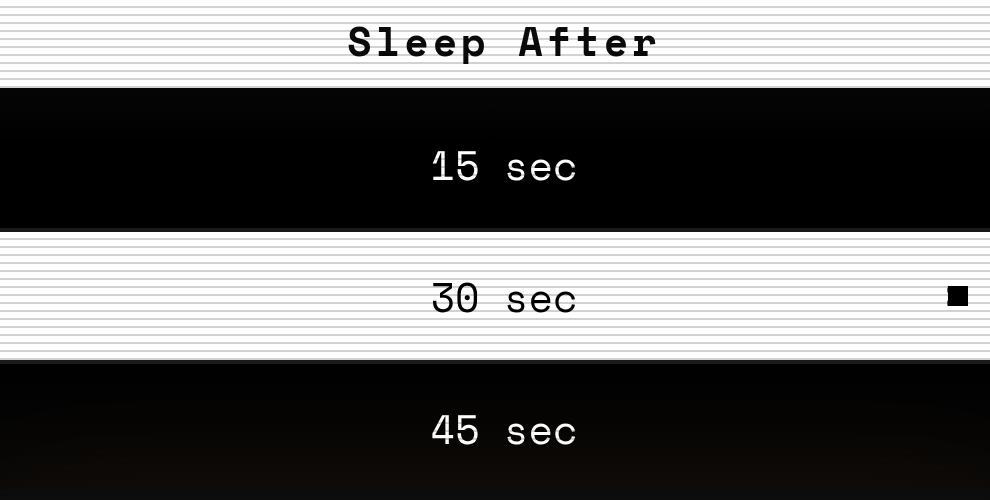

04 — Power
Sleep Timer
Six presets — 10, 15, 30, 45, 60, or 120 seconds — before the controller drops into deep sleep. Wakes instantly on the next knob press, with the receiver already in range.
- 10s · 15s · 30s · 45s · 60s · 120s

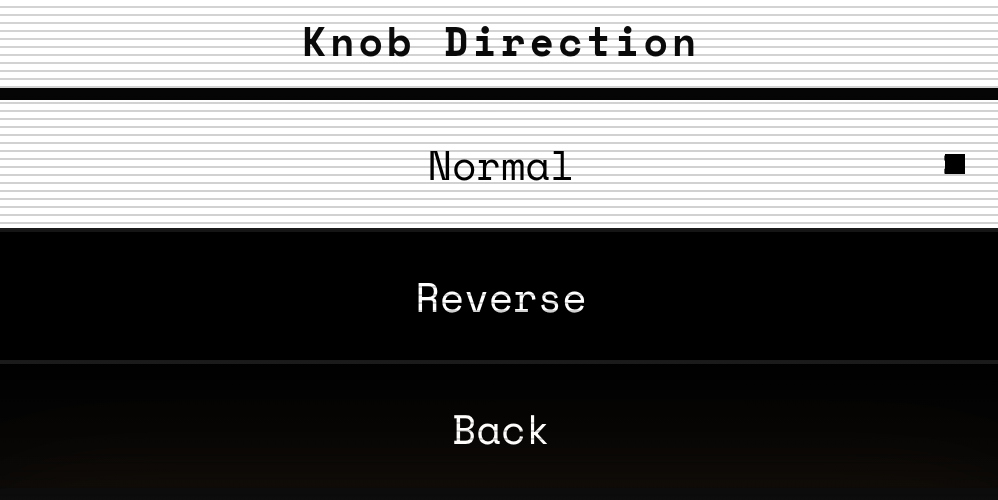

05 — Feel
Knob Direction
Flip the encoder logic so clockwise behaves the way your hand expects — handy if you mount the controller on the passenger side or below the steering wheel.
- Normal · Reverse
06 — Identity
About
Read out the device’s unique 6-byte ID — the same one paired to your receiver over the CTRLX Link. Useful for support, returns, and verifying the right unit at a glance.
- CTRLX Link · Pairing ID
